MATREXX 70 ADD-RGB 3F is a new-concept chassis specially designed for the enjoyment of DIY. By adopting numerous novel structural designs, its architecture yields convenience and flexibility in PC building. Meanwhile 3 * RGB fans and 1* RGB LED strip are included to provide top-notch lighting effects. MATREXX 70 ADD-RGB 3F is ready to give you a boost of the gaming ambience.
01 03
10 01
10 03
10 05
For other brand devices
Friendly ADD-RGB Ecosystem Included
The ADD-RGB lighting system includes 4 pre-programmed lighting effects and can be easily controlled by the RGB button on the I/O panel or motherboard. Meanwhile the special accessory pack enables the syncing between the products from Deepcool and other brands, thereby creating a friendly ADD-RGB ecosystem.
02 04 0302 04 0402 04 0502 04 0602 04 07
10 04
  • Easy-to-install Side Panel
    02 05
    02 06
    The side panel is fixed with 1 groove + 2 screws design. The groove can hold the panel and prevent it from falling even with no screws mounted,which makes installation much easier. After installation, this unique fixation method will grant the glass panel even stress distribution, hence reduces the risk of cracking;
    02 07

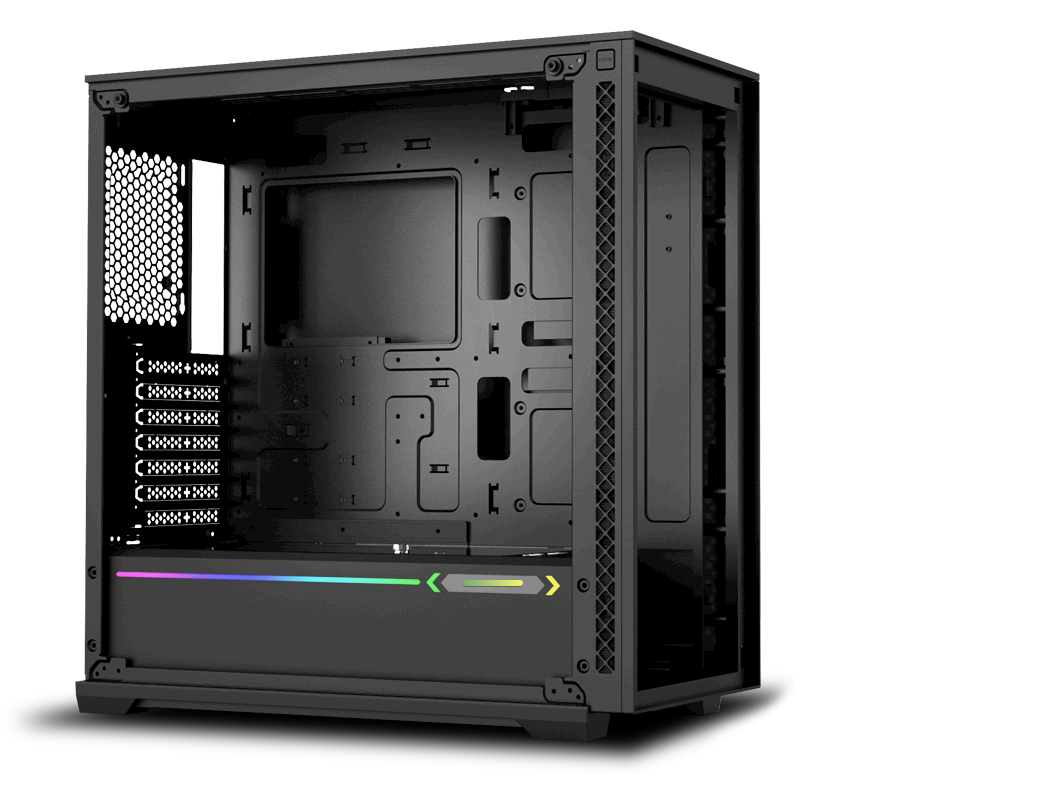

Removable radiator/fan Holder
The radiator/fan holder simplifies the installation and replacement of the radiator and fan, it’s especially effort-saving when you need to install the radiator and the fan on the different sides of the holder.
The holder supports up to 360mm radiator or 3*140mm fans.
03 02
Removable Glass PSU Shroud
In MATREXX 70 ADD-RGB 3F, DEEPCOOL creatively used tinted glass as the top cover of PSU shroud, which is pioneering in the industry.

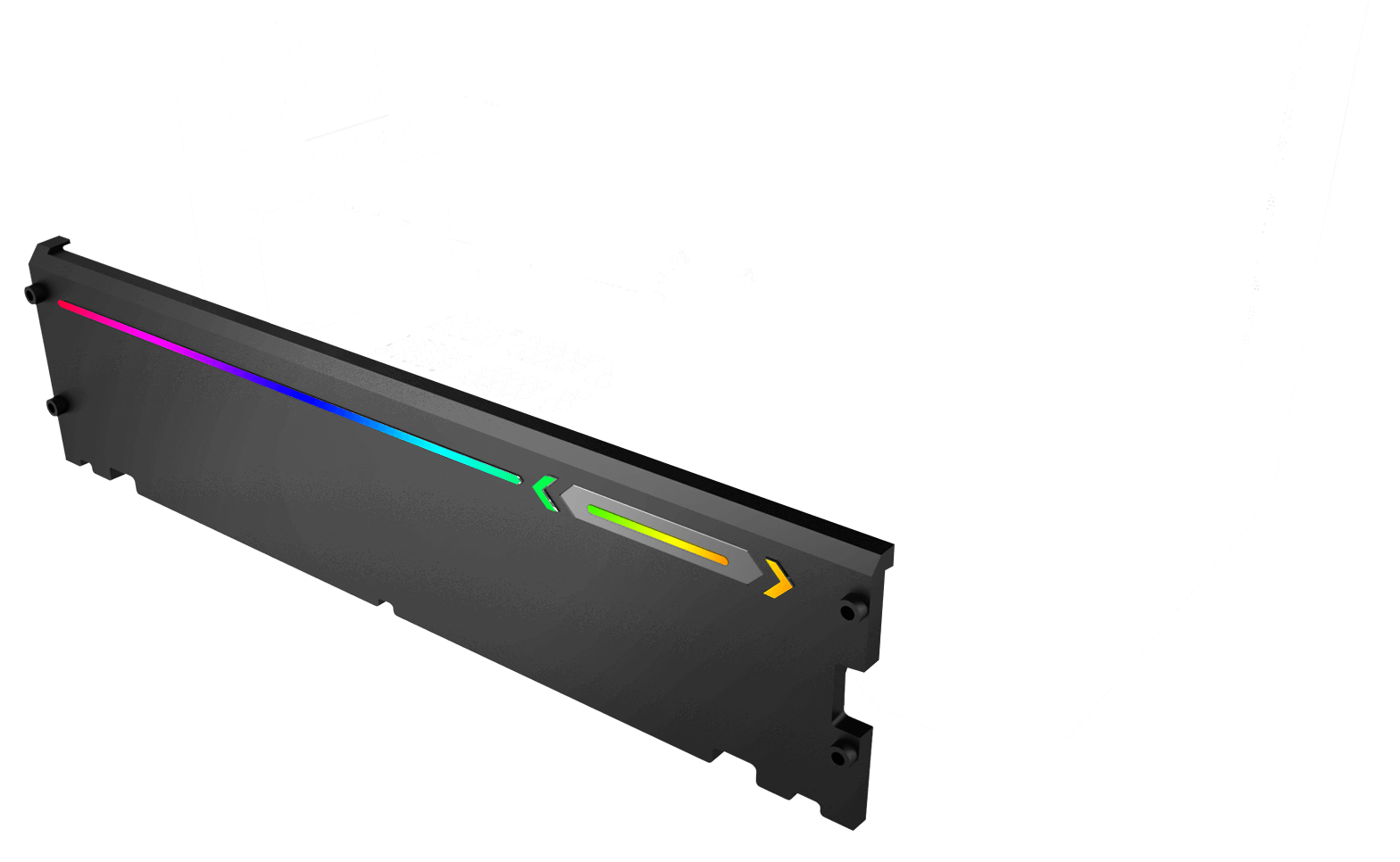

The tinted glass can hide the power cables while reflecting the RGB lighting of your other parts, especially GPU, hence creating an infinite space visual effect. Effect Diagram of Light Bars Installed on the Power Shield (RGB Light Bars are included)
04 01
04 02 00
04 02 02 10
04 03

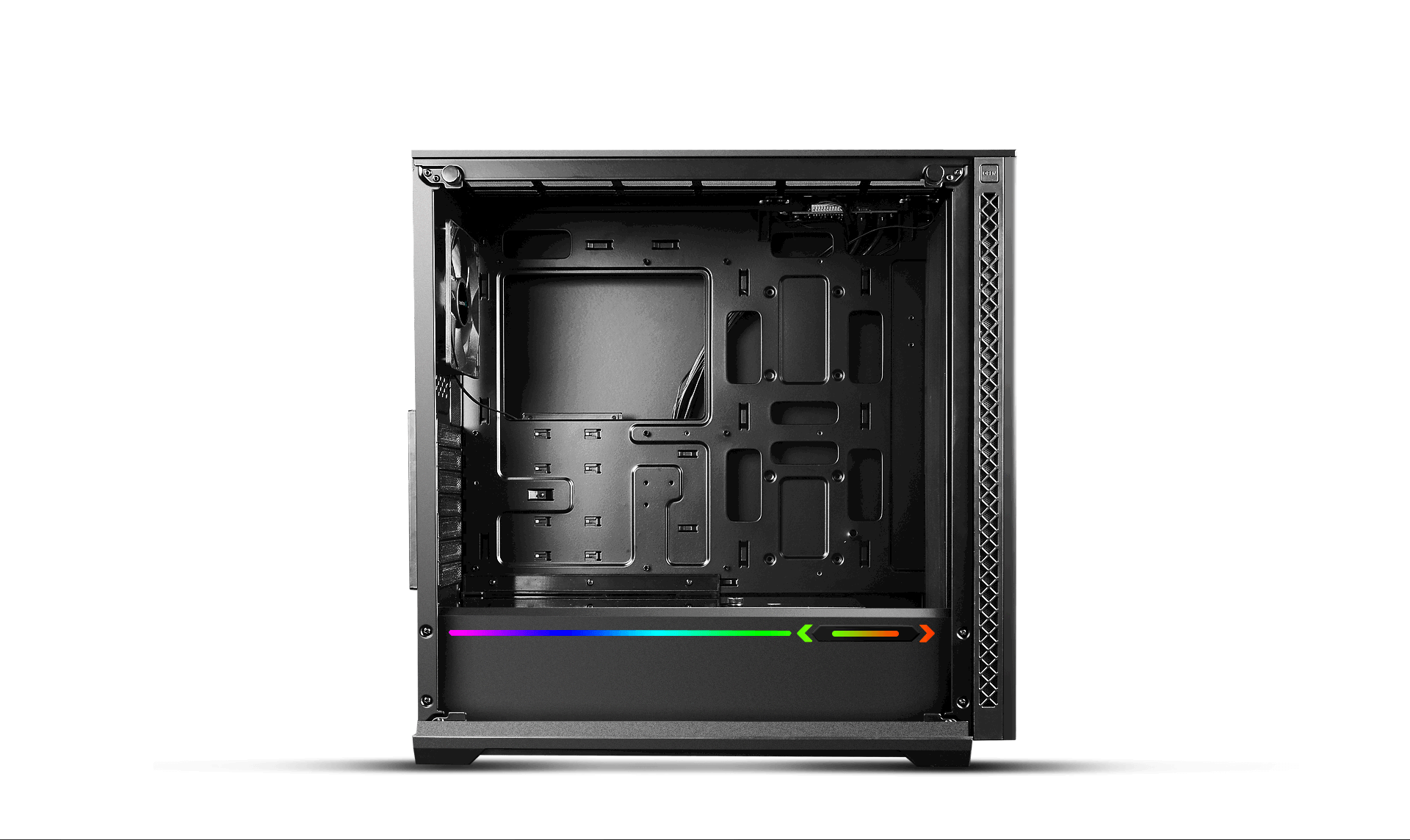

Flexible Ventilation Solutions with Excellent Performance
With air intake options at front and bottom, exhaust options at the top and rear, MATREXX 70 ADD-RGB 3F provides highly flexible ventilation solutions. Meanwhile the 15mm-wide front intake hole guarantees sufficient air supply, together with the low friction material applied on all meshes, the cooling efficiency is maximized.
06 02

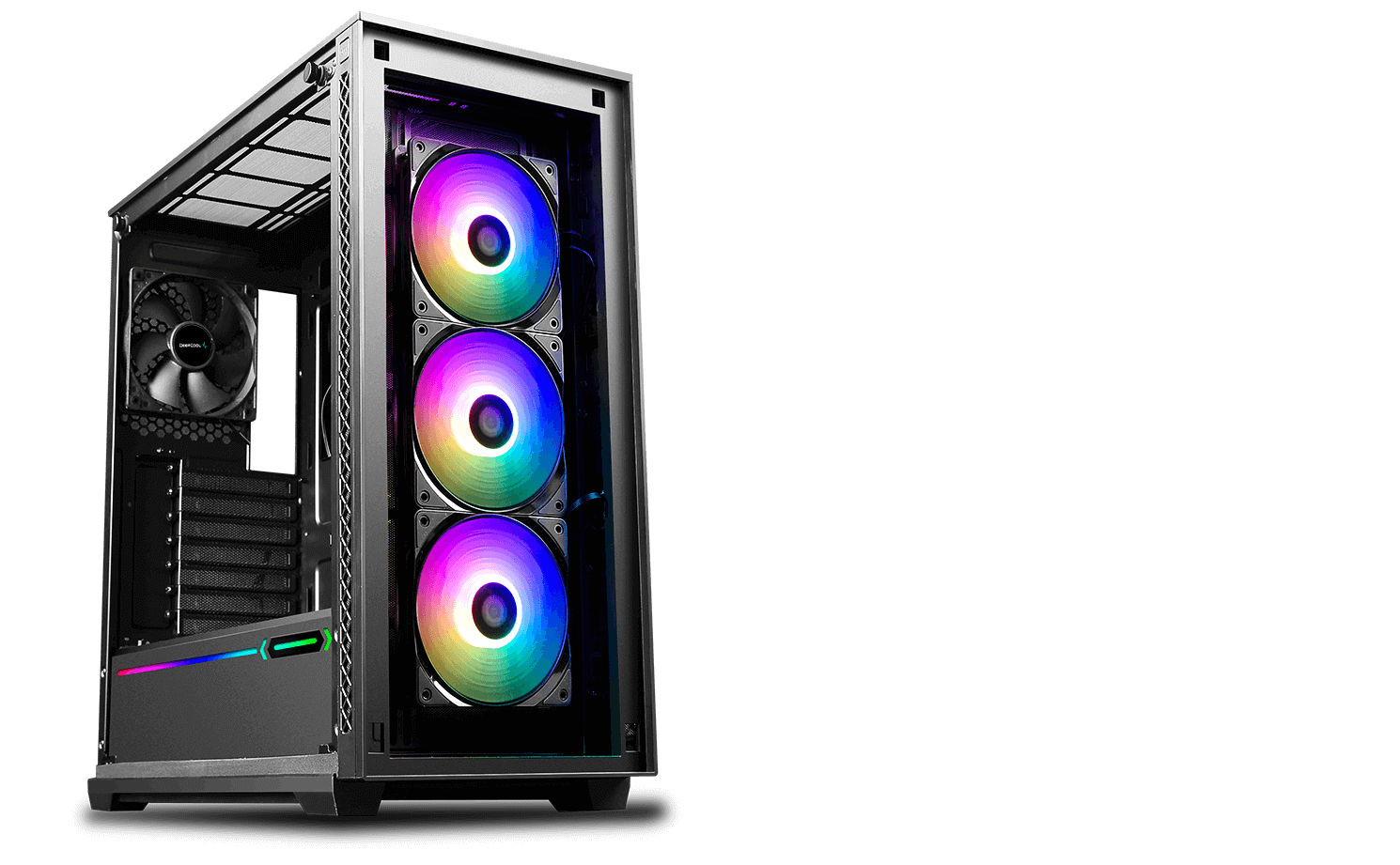

Radiator Support
07 02
07 03 01
07 04 01
  • All-round Dust Proof
    Dust filters are installed at the front, top and bottom of the case.The all-round and fine coverage offers remarkable dust-proof capabilities. Meanwhile the top filter is magnetic whereas the front/bottom filters are inserted, which makes them very easy to clean.
    08 02 04
  • Abundant Storage Support
    A total of 6* 2.5’’ drives or 4*2.5’’ + 2* 3.5’’ drives can be mounted in MATREXX 70 ADD-RGB 3F. 2 SSD bays are fixed at the back of motherboard tray for quick installation. 2* 3.5/2.5’’ hard drive bays are mounted at the bottom of the case which are relocatable and removable.After removal, 2*120mm fans can be installed at the location.
    08 02 03

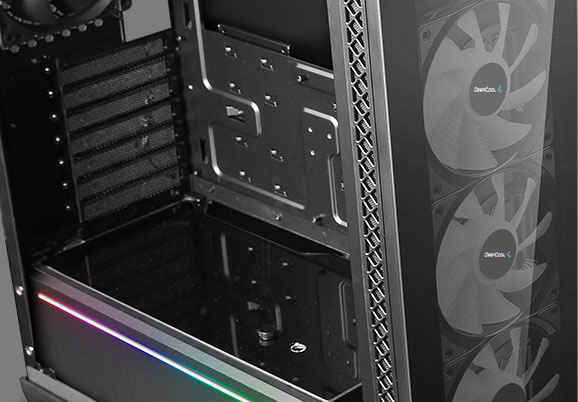

09 01
09 01 01
Graphic cards support up to 380mm
09 02
09 02 01
Equipped with large spacing – 170mm( Tower Room ) and 30mm ( cable sorting at the rear )
09 03
09 03 01
Four 2.5inch independent hard disk lots and two 3.5/2.5inch hard disk spaces.

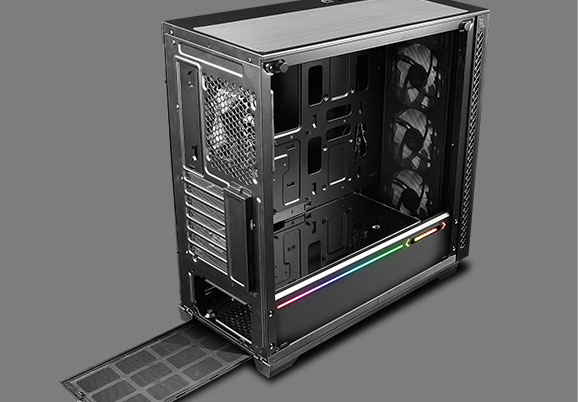

09 04
09 04 01
As the dust screens are installed at the top, bottom and front, it provides remarkable anti-dust capabilities while being easy to clean.
รหัสสินค้า: 8975117348 หมวดหมู่: ป้ายกำกับ: , , ,



Case Type

Middle Tower


ABS+SPCC+Tempered Glass

Product Dimensions (L×W×H)


Net Weight

9.39 Kg

Gross Weight

10.81 kg

5.25" Drive Bays


3.5" Drive Bays


2.5" Drive Bays


I/O Ports


Expansion Slots

7 +2

Cooling Fans Support

Pre-installed: Front: 3×120mm ADD-RGB Fan Rear: 1×120mm black fan
Optional: Front: 3×140mm; Top: 3×120/140mm

Cable Management

30mm Clearance

Liquid Cooler Support

Front: 120/140/240/280/360mm radiator; Top: 120/140/240/280/360mm radiator; Rear: 120mm radiator

Power Supply Type

ATX PS2 (maximum length: 200mm)

CPU Cooler Height Limit


VGA Length Limit

380mm (horizontal)/360mm (vertical)

Carton Dimension (LxWxH)
